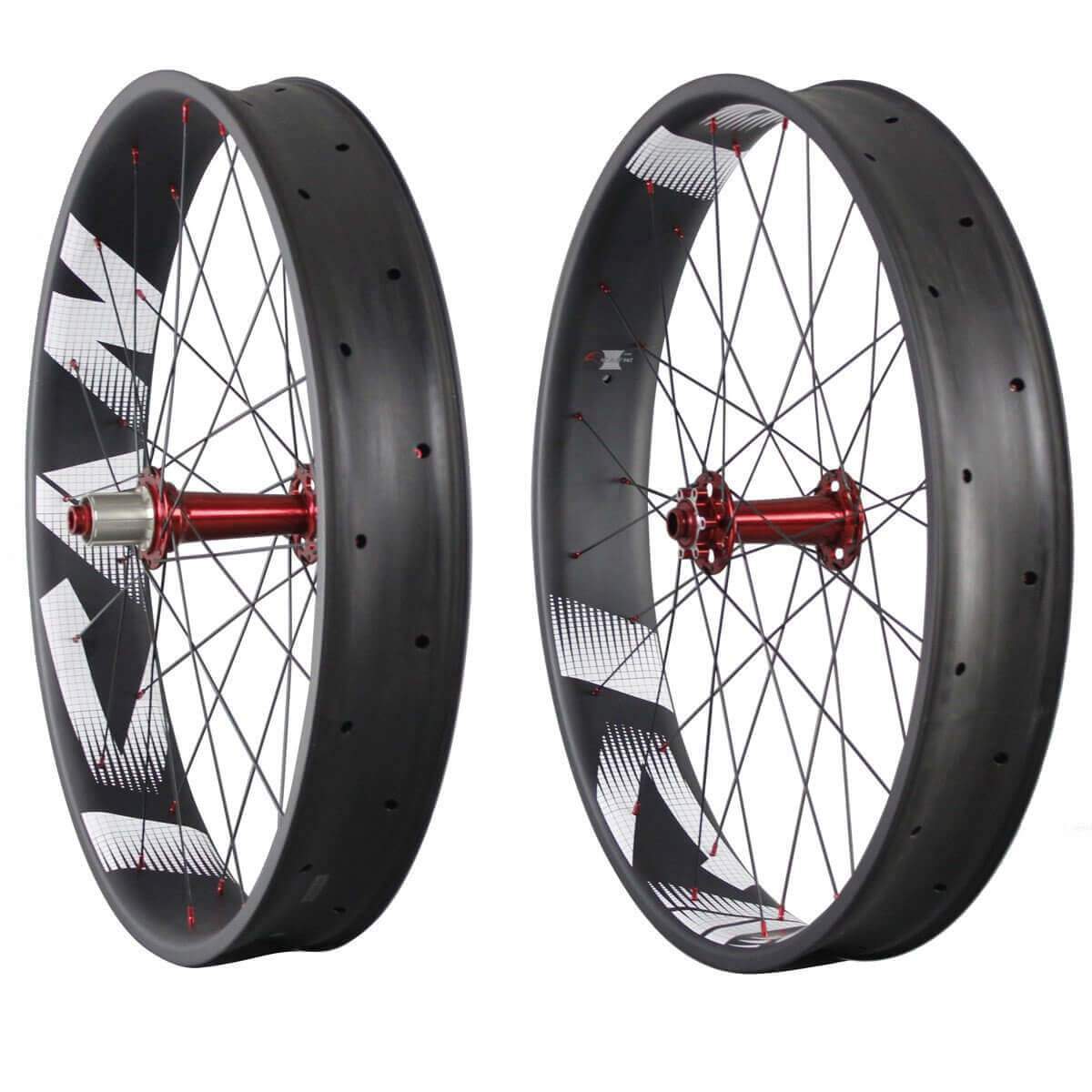

There are many myths and tales built into cycling, and many have to do with buying parts. One of these tales is that fat bike wheels are heavy. Well, we have decided to destroy that tale for you with our high-quality carbon fiber fat bike wheels. We also decided to we have to do this at a price that suits everyone.
If you truly want to ride a fat bike with great feel, you need to ride your bike tubeless. Our 90mm wide carbon fiber rim is tubeless ready. Running pressures super low means, you can avoid adding to trail erosion so not only do you prevent punctures and lower weight but you can help save the environment with our wheels.
We attach our 90mm carbon rims to Powerway M74 hubs. We do this as the hubs are light, have sealed bearings and are highly reliable, especially as we have a 2-year warranty on them. The hubs are available in black or red. We offer black and red as black goes with everything and red is faster, or is that just another cycling tale? We also have Shimano freehubs and XD drivers in stock so you can run these wheels no matter what groupset you prefer to run.
Our front hub comes in a 150mm width, and we offer the rear in 190mm or 197mm. That means that our wheels are ideally matched to the 4.8” of rubber that you can fit the Toray T700 carbon fibre rim. Now, all you have to do is decide what frame you want to fit these wheels too.
Specification
|
Type
|
Carbon Fatbike wheelset
|
|
Materials
|
100% Carbon Fiber Toray T700
|
|
Size
|
26er(Max tire 4.8'')
|
|
Rim
|
Finish: UD Matt
Drills: 32/32 holes
Width: 90mm
|
|
Thru Axle
|
Front: 15*150mm
Rear: 12*190/197mm
|
|
Profile
|
Clincher Tubeless Ready
|
|
Hub
|
Powerway Hub
Front: M74 2 sealed bearings 198g
Rear: M74 4 sealed bearings 354g
Color: Black/Red
|
|
Spoke
|
CN Round spoke
|
|
Spoke Count
|
Front: 32
Rear: 32
|
|
Spoke Pattern
|
Front: 3x Cross
Rear: 3xcross
|
|
Nipple
|
Alloy
Color: Black/Red
|
|
Cassette Compatibility
|
Shimano 10/11 speeds
|
|
Weight
|
Total: 2436+-20g
Front: 1133+-10g
Rear: 1303+-10g
|
|
Guarantee
|
2 years
|
|
Free
|
1 set of thru axle
|
|
Packing Size
|
81.5cm x 17cm x 65.5cm
|
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service
Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (Jumping, trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 140psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
More details can be known from "Warranty & Return".
